Fabric properties
| soft | stiff | |
| Semi transparent | ||
| Polyester Trevira CS, aluminium backed | ||
| 190 g/m² | 170 g/m² | |
| 0.50 mm | 0.36 mm | |
| 235 cm | ||
 | 240 cm | |
 | 8.9 cm, 12.7 cm, 240 cm | |
Features / Technical properties
| soft | stiff | |
| 5-6 | ||
| Alpha-w = 0.25 | ||
| Flame retardant | ||
| Optimised for workstations | ||
| Low heat transmittance | ||
| Suitable for Wave | ||
| Digital printing | ||
 | Oeko-Tex | |
 | Special colours from 500 m | |
Washing instructions
Optical and solar coefficients (± 5%, DIN EN 410)
| soft | |||||||
| Colour | |||||||
|---|---|---|---|---|---|---|---|
| Colour 111 | Tv(%) 12.0 | Ts(%) 11.0 | Rs(%) 41.0 | As(%) 48.0 | Tuv(%) 12.0 | Fc() 0.68 | gtot() 0.47 |
| Colour 116 | Tv(%) 7.0 | Ts(%) 9.0 | Rs(%) 38.0 | As(%) 53.0 | Tuv(%) 7.0 | Fc() 0.69 | gtot() 0.49 |
| Colour 119 | Tv(%) 6.0 | Ts(%) 8.0 | Rs(%) 39.0 | As(%) 53.0 | Tuv(%) 6.0 | Fc() 0.69 | gtot() 0.48 |

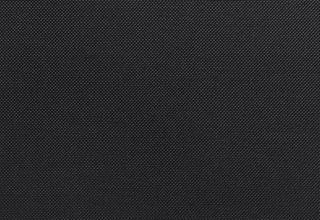

| Colour 911 | Tv(%) 5.0 | Ts(%) 7.0 | Rs(%) 40.0 | As(%) 53.0 | Tuv(%) 5.0 | Fc() 0.67 | gtot() 0.47 |
| stiff | |||||||
| Colour | |||||||
|---|---|---|---|---|---|---|---|
| Colour 111 | Tv(%) 11.0 | Ts(%) 11.0 | Rs(%) 50.0 | As(%) 39.0 | Tuv(%) 11.0 | Fc() 0.61 | gtot() 0.44 |
| Colour 116 | Tv(%) 6.0 | Ts(%) 8.0 | Rs(%) 50.0 | As(%) 42.0 | Tuv(%) 6.0 | Fc() 0.62 | gtot() 0.43 |
| Colour 119 | Tv(%) 7.0 | Ts(%) 9.0 | Rs(%) 49.0 | As(%) 42.0 | Tuv(%) 7.0 | Fc() 0.61 | gtot() 0.44 |
| Colour 911 | Tv(%) 3.0 | Ts(%) 6.0 | Rs(%) 48.0 | As(%) 46.0 | Tuv(%) 4.0 | Fc() 0.62 | gtot() 0.44 |
Fc + gtot: Value calculated with glass: 0.72 / Ug = 1.6 W/m² K, DIN EN 13363-1
Classification of solar shading devices (DIN EN 14501:2021)
| stiff | ||||
| Colour | Glare control | Privacy at night | Sight contact with the outside | Daylight utilisation |
|---|---|---|---|---|
| Colour 111 | 0 | 2 | 1 | 1 |
| Colour 116 | 1 | 2 | 2 | 1 |
| Colour 119 | 1 | 2 | 2 | 1 |
| Colour 911 | 1 | 2 | 2 | 1 |
0: No effect, 1: Low effect, 2: Medium effect, 3: High effect, 4: Very high effect
Downloads
Flame retardant
On request:
NFPA 701
M1 (NF P 92-503/5/7)
Proven acoustic properties
