Multi Shadow

07
09
10
11
16
21
25
26
28
33
34
35

Applications

Fabric properties

Dimout
Polyester Trevira CS
170 g/m²
0.35 mm
235 cm
8.9 cm, 12.7 cm, 240 cm

Features / Technical properties

6-7
Flame retardant
Applicable in humid areas
Digital printing
Oeko-Tex
Laser cutting
Special colours from 500 m

Washing instructions

Oeko-Tex

Optical and solar coefficients (± 5%, DIN EN 410)

Colour
Colour 07Tv(%) 24.0 Ts(%) 29.0 Rs(%) 52.0 As(%) 19.0 Tuv(%) 15.0 Fc() 0.61 gtot() 0.44
Colour 09Tv(%) 22.0 Ts(%) 29.0 Rs(%) 52.0 As(%) 19.0 Tuv(%) 11.0 Fc() 0.61 gtot() 0.44
Colour 10Tv(%) 37.0 Ts(%) 37.0 Rs(%) 61.0 As(%) 2.0 Tuv(%) 36.0 Fc() 0.56 gtot() 0.40
Colour 11Tv(%) 4.0 Ts(%) 22.0 Rs(%) 41.0 As(%) 37.0 Tuv(%) 6.0 Fc() 0.67 gtot() 0.49
Colour 16Tv(%) 8.0 Ts(%) 24.0 Rs(%) 41.0 As(%) 35.0 Tuv(%) 9.0 Fc() 0.58 gtot() 0.44
Colour 21Tv(%) 3.0 Ts(%) 21.0 Rs(%) 34.0 As(%) 45.0 Tuv(%) 3.0 Fc() 0.72 gtot() 0.52
Colour 25Tv(%) 13.0 Ts(%) 25.0 Rs(%) 46.0 As(%) 29.0 Tuv(%) 8.0 Fc() 0.65 gtot() 0.46
Colour 26Tv(%) 1.0 Ts(%) 18.0 Rs(%) 33.0 As(%) 49.0 Tuv(%) 1.0 Fc() 0.73 gtot() 0.51
Colour 28Tv(%) 36.0 Ts(%) 35.0 Rs(%) 59.0 As(%) 6.0 Tuv(%) 21.0 Fc() 0.58 gtot() 0.41
Colour 33Tv(%) 0.5 Ts(%) 17.0 Rs(%) 29.0 As(%) 54.0 Tuv(%) 0.10 Fc() 0.75 gtot() 0.53
Colour 34Tv(%) 3.0 Ts(%) 20.0 Rs(%) 36.0 As(%) 44.0 Tuv(%) 2.0 Fc() 0.71 gtot() 0.50
Colour 35Tv(%) 1.0 Ts(%) 18.0 Rs(%) 31.0 As(%) 51.0 Tuv(%) 1.0 Fc() 0.74 gtot() 0.52
Fc + gtot: Value calculated with glass: 0.72 / Ug = 1.6 W/m² K, DIN EN 13363-1

Classification of solar shading devices (DIN EN 14501:2021)

Colour Glare control Privacy at night Sight contact with the outside Daylight utilisation
Colour 07Glare control 1 Privacy at night 2 Sight contact with the outside 0 Daylight utilisation 2
Colour 09Glare control 1 Privacy at night 2 Sight contact with the outside 0 Daylight utilisation 2
Colour 10Glare control 0 Privacy at night 2 Sight contact with the outside 0 Daylight utilisation 3
Colour 11Glare control 4 Privacy at night 2 Sight contact with the outside 2 Daylight utilisation 1
Colour 16Glare control 4 Privacy at night 2 Sight contact with the outside 1 Daylight utilisation 1
Colour 21Glare control 3 Privacy at night 2 Sight contact with the outside 2 Daylight utilisation 1
Colour 25Glare control 3 Privacy at night 2 Sight contact with the outside 1 Daylight utilisation 2
Colour 26Glare control 4 Privacy at night 2 Sight contact with the outside 2 Daylight utilisation 0
Colour 28Glare control 0 Privacy at night 2 Sight contact with the outside 0 Daylight utilisation 3
Colour 33Glare control 4 Privacy at night 2 Sight contact with the outside 2 Daylight utilisation 0
Colour 34Glare control 4 Privacy at night 2 Sight contact with the outside 2 Daylight utilisation 1
Colour 35Glare control 4 Privacy at night 2 Sight contact with the outside 2 Daylight utilisation 0
0: No effect, 1: Low effect, 2: Medium effect, 3: High effect, 4: Very high effect

Data Sheet

Downloads

Flame retardant
Type C (BS 5867-2)
B1 (DIN 4102-1)
On request:
B-s1,d0 (EN 13501-1)
NFPA 701
M1 (NF P 92-503/5/7)
Certificates
Oeko-Tex

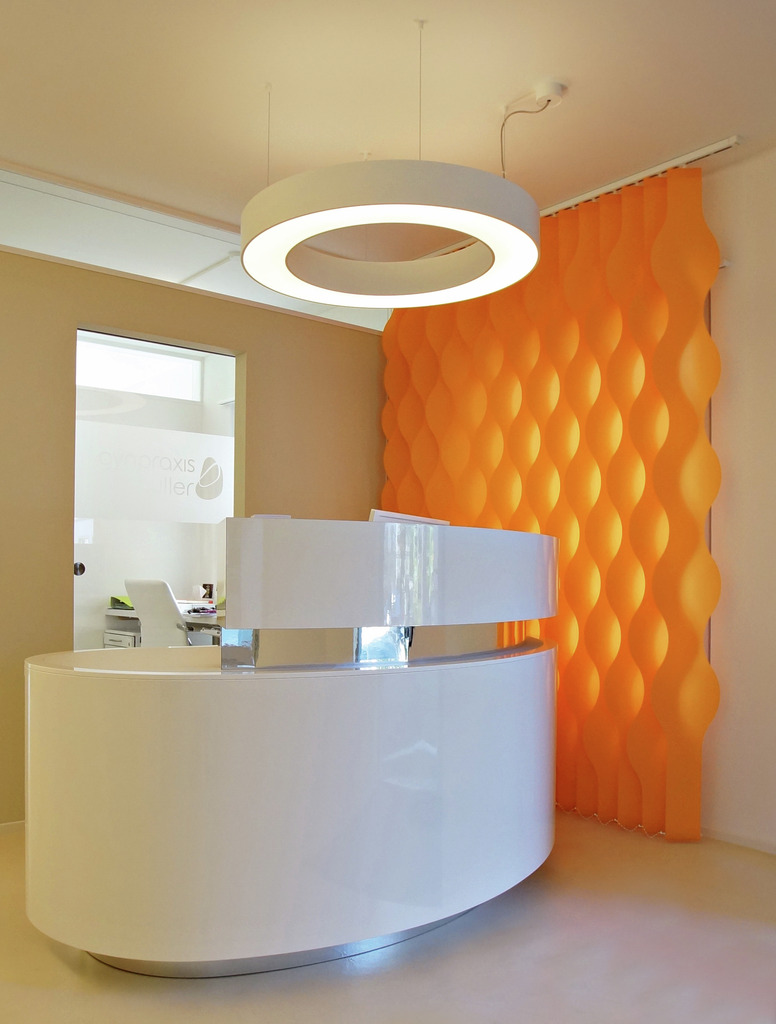

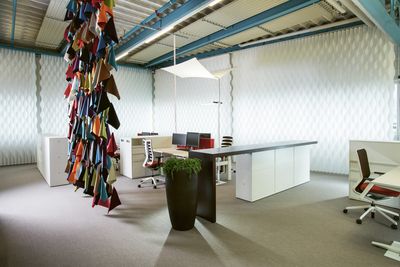

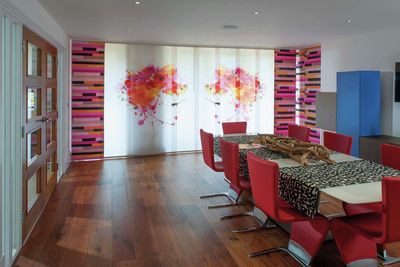

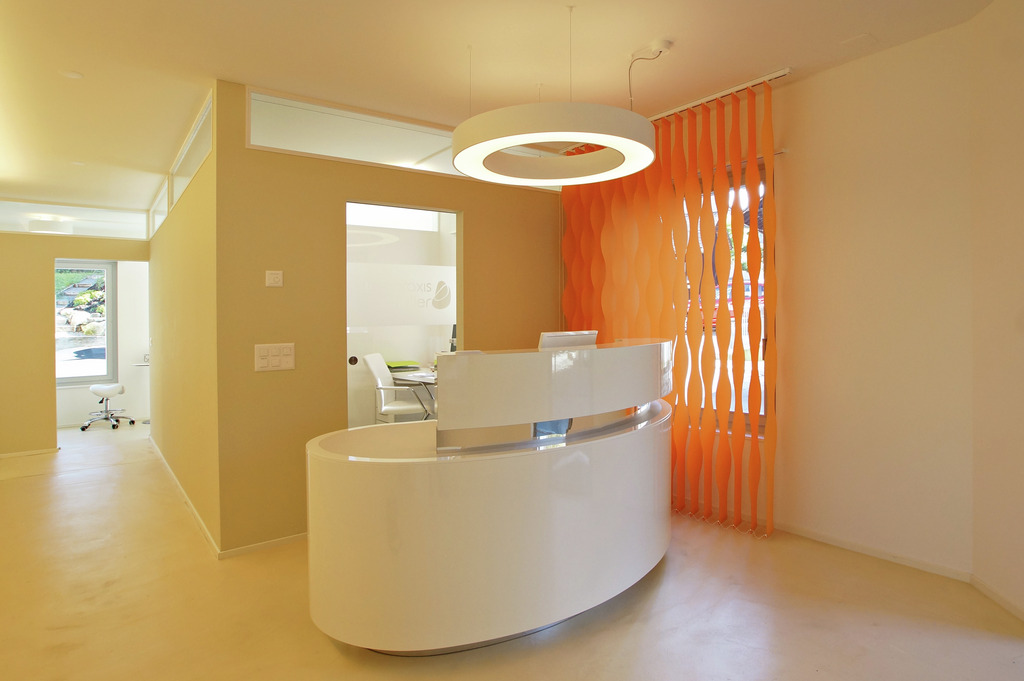

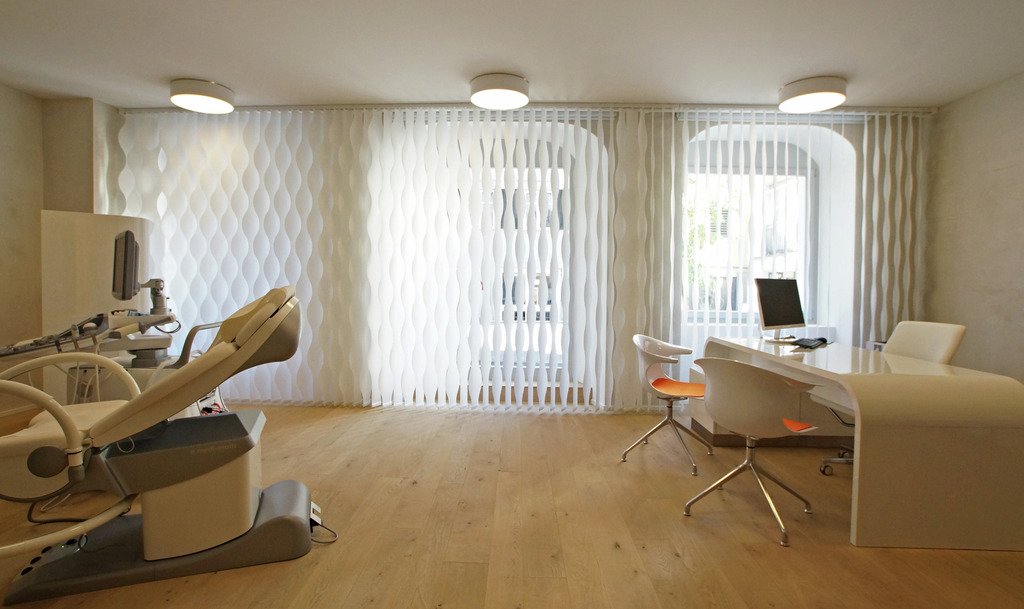

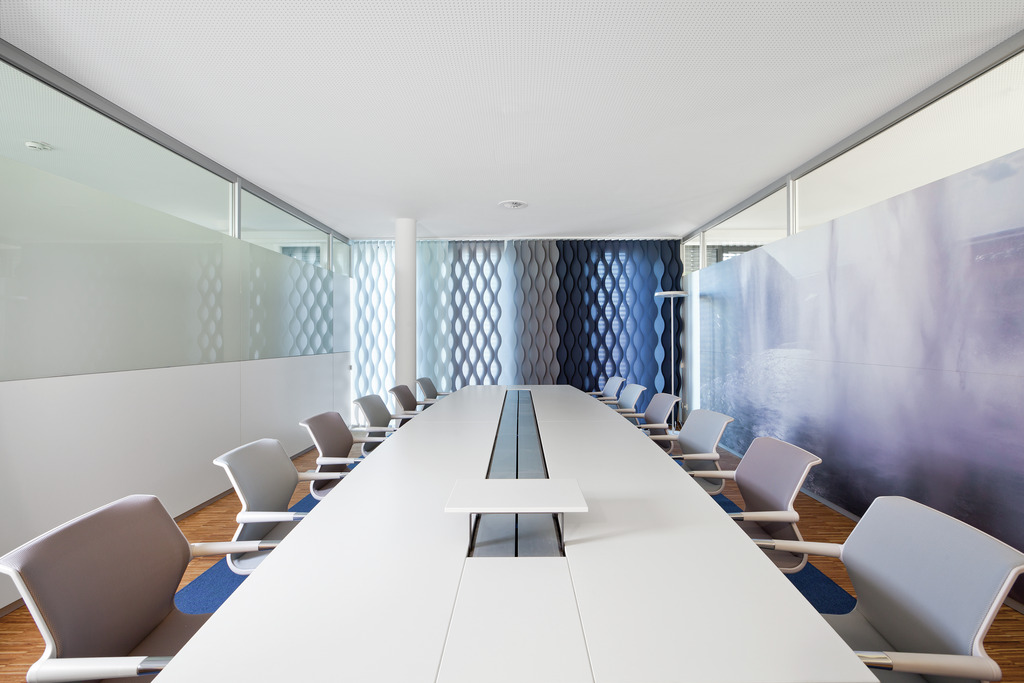

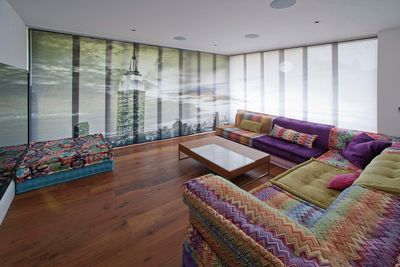

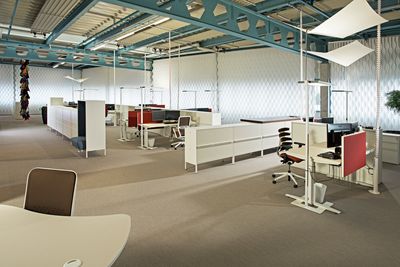

Inspiration
